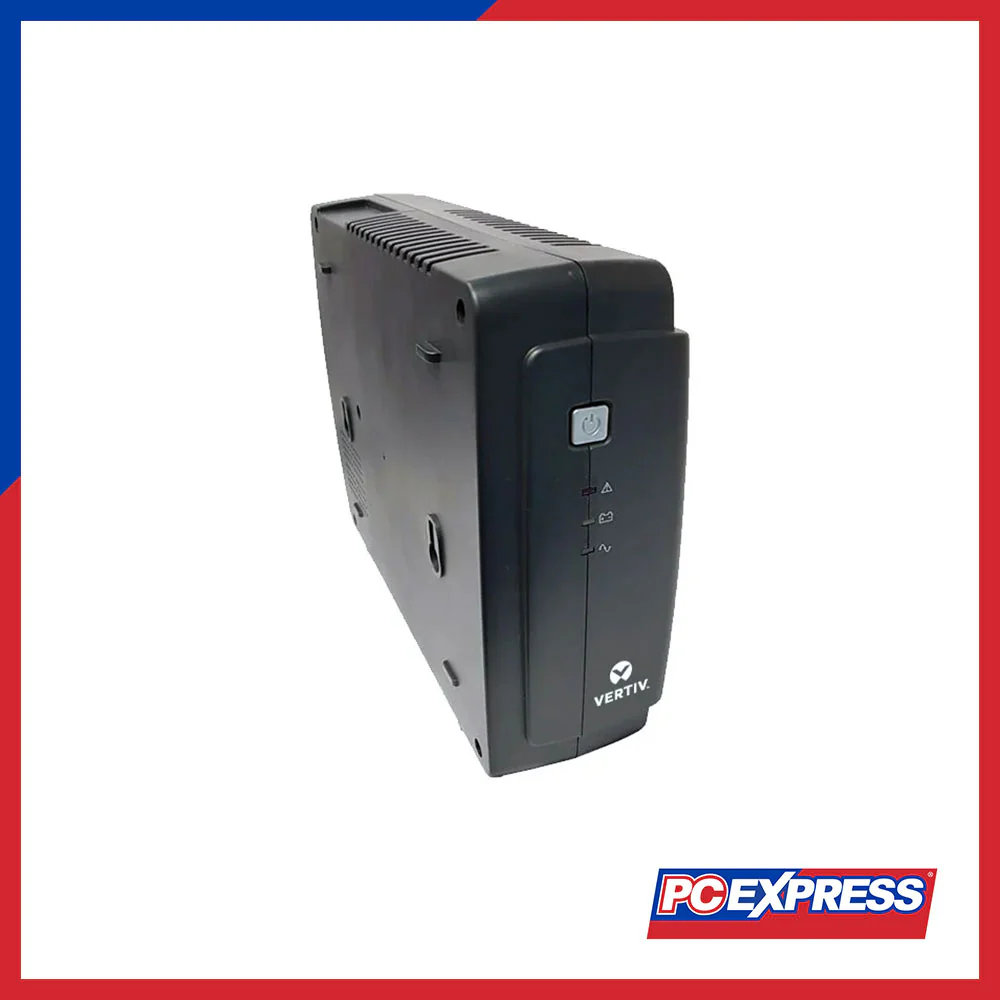

VERTIV Liebert® PSA1000-SOHO ITON 1000VA 230V AVR Universal Sockets
SPECIFICATION
|
Category |
PSA1000-SOHO |
|
Capacity (VA/W) |
1000VA / 600W |
|
Input |
|
|
Voltage Range |
162 – 290VAC, Single-phase |
|
Frequency Range |
50Hz/60Hz, Automatic identification |
|
Output |
|
|
Voltage Tolerance (Battery Mode) |
Simulated sine wave at nominal voltage ±10% |
|
Frequency Range (Battery Mode) |
50Hz/60Hz, Automatic identification |
|
Transfer Time |
Typical 2–6 ms, Max 10 ms |
|
Battery |
|
|
Battery Type & Number |
12V/9Ah × 1 |
|
Typical Recharge Time |
6–8 hours to 90% (1A charging current at Normal Mode) |
|
Configuration |
Battery: 1 × 2.7kg, 9Ah |
|
Sockets & USB |
|
|
Sockets |
6 × Universal |
|
USB Charger |
No |
|
Runtime (Minutes) |
|
|
25% Load |
18 min |
|
50% Load |
4 min |
|
System Features |
|
|
Indicators |
Fault: Solid red LED |
|
Protection |
|
|
Alarm |
|
|
Operating Temperature |
|
|
Humidity Range |
0 ~ 95% (non-condensing) |
|
Noise Level |
|
|
Fuse Protection |
|
|
Physical |
|
|
Dimensions (D × W × H) |
87 × 346 × 208 mm |
|
Gross Weight |
6.6 kg |
|
Net Weight |
6.0 kg |
