Network Security

SPI Firewall

Access Control

IP & MAC Binding, Application Layer Gateway

Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Wireless Standards

Wi-Fi 4, IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N300, 2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses, 2× Fixed Antennas

WiFi Capacity

Legacy

Working Modes

Router Mode, Access Point Mode, Range Extender Mode, WISP Mode

Hardware Processor

Single-Core CPU

Ethernet Ports

1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports

Buttons

Reset Button

Power

9 V ⎓ 0.6 A

Software Protocols

IPv4, IPv6

Parental Controls

URL Filtering, Time Controls

WAN Types

Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service

QoS by Device

NAT Forwarding

Port Forwarding, Port Triggering, DMZ, UPnP

IPTV

IGMP Proxy, IGMP Snooping

DHCP

Address Reservation, DHCP Client List, Server

DDNS

NO-IP, Comex, DynDNS

Management

Tether App, Webpage, Check Web Emulator

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ 70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Test Data

WiFi Transmission Power: CE: <20dBm(2.4GHz), FCC: <30dBm, WiFi Reception Sensitivity: 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER

Physical Dimensions

7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm)

Package Contents

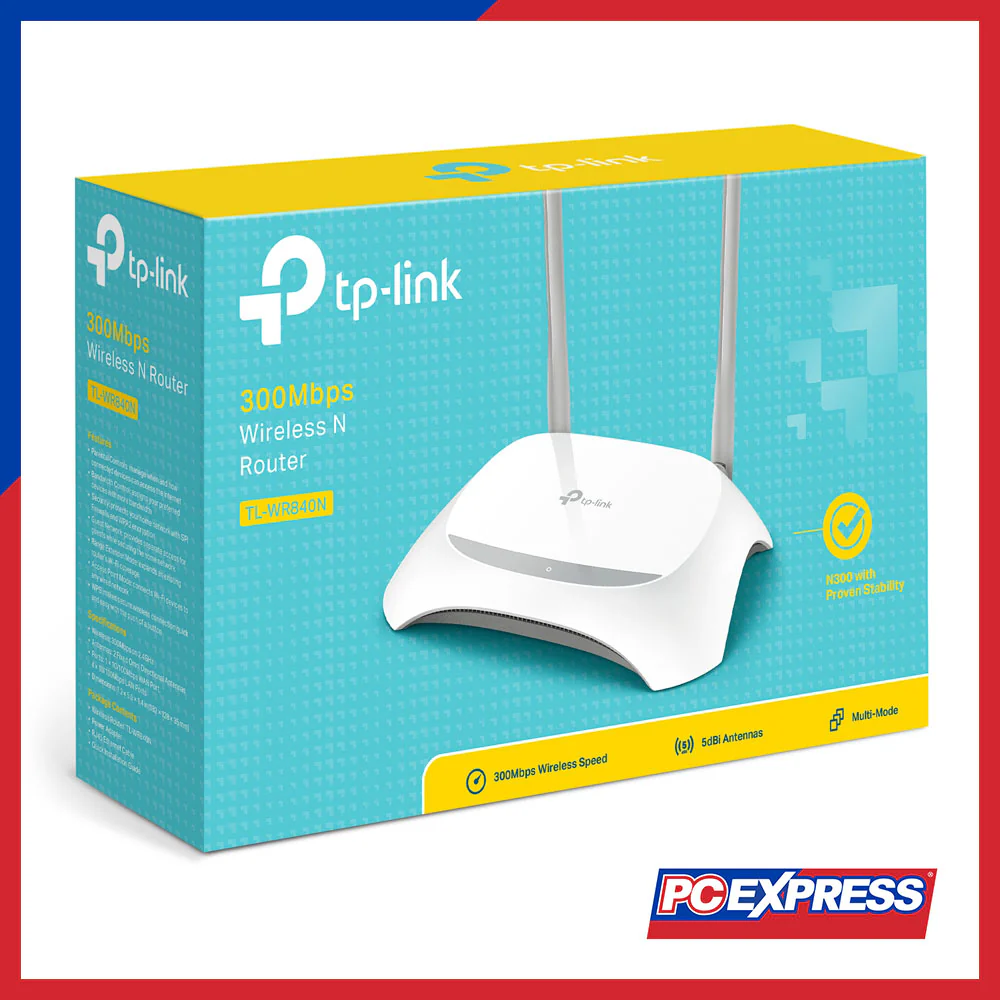

Wi-Fi Router TL-WR840N, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
