Part Number

SPR-11348-03-20G

Model

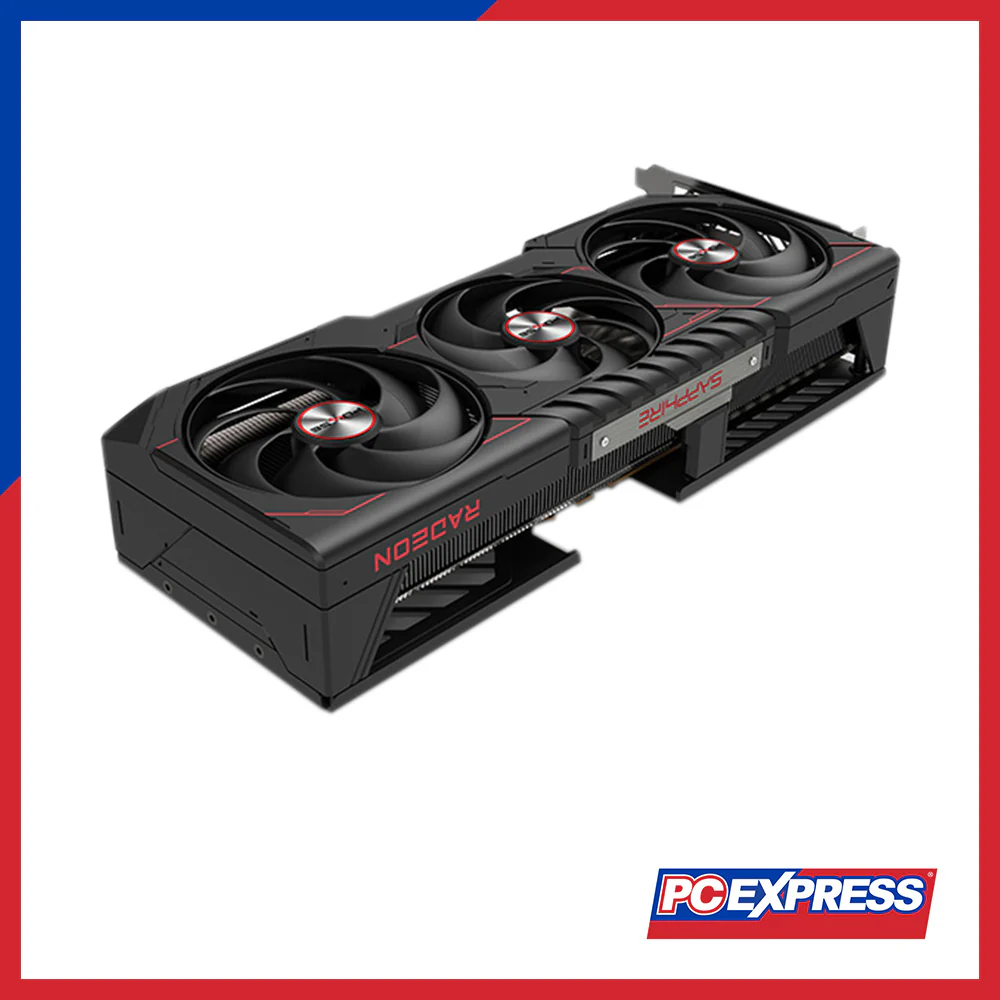

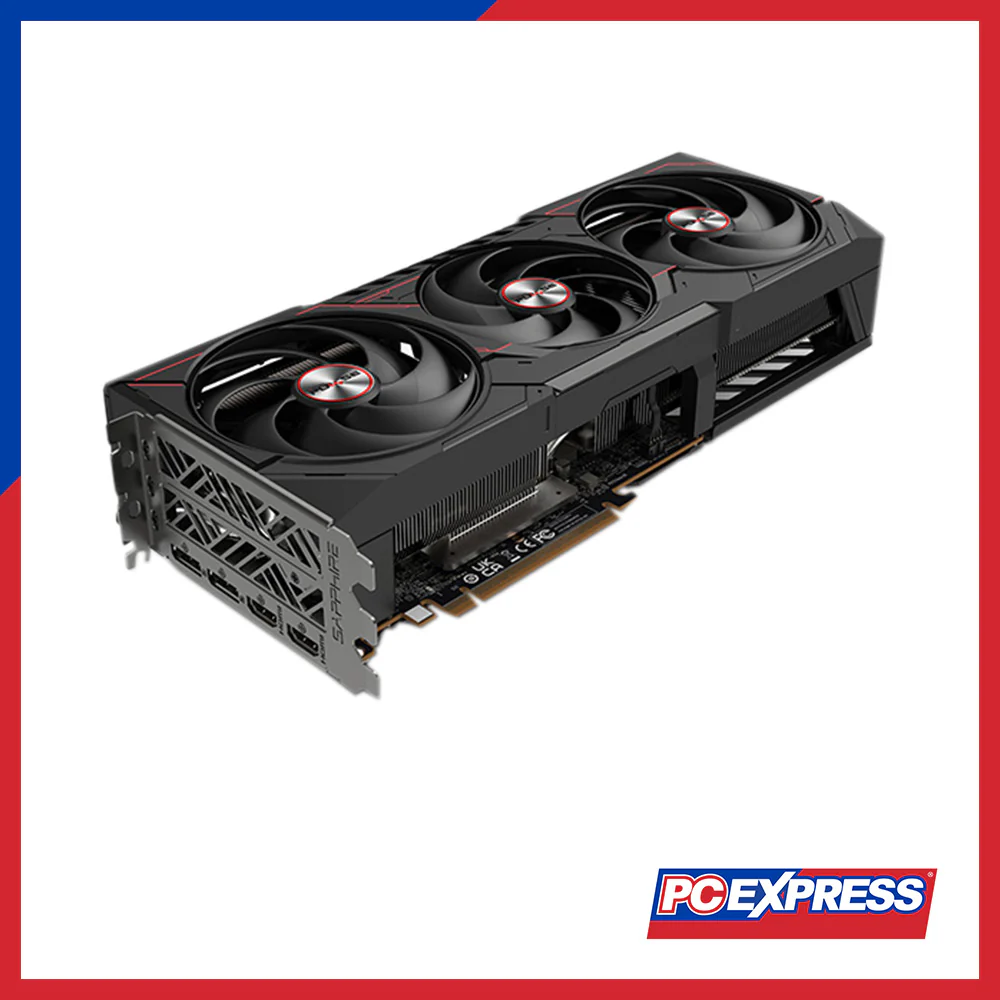

AMD Radeon™ RX 9070 XT Graphics Card

Architecture

AMD RDNA™ 4

Engine Clock

Boost Clock: Up to 2970 MHz
Game Clock: Up to 2400 MHz

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Ray Accelerators

64

AI Accelerators

128

Infinity Cache

64MB

Memory Size / Bus

16GB / 256-bit GDDR6

Memory Clock

20 Gbps Effective

Max Displays

4

Max Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Outputs

2x HDMI®, 2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

4K

Sapphire Features

Honeywell PTM7950 TIM, Tri-X Cooling, AeroCurve Fan Blade, Metal Backplate, L-Shape Support Bracket, etc.

AMD Features

HYPR-RX, FSR 4, Radiance Display Engine, Anti-Lag 2, AV1 Encode/Decode, DirectX® 12 Ultimate, etc.

Cooler Type

Tri-X Cooling, AeroCurve Fan Blade, Integrated Cooling Module, Two-Ball Bearing

Form Factor

3-slot, ATX
Dimensions: 320(L) x 120.25(W) x 61.6(H) mm

Power Consumption

304W (Typical Board Power)

Power Connector

2 x 8-pin

Minimum PSU Requirement

750W

System Memory Requirement

Minimum: 8GB
Recommended: 16GB

Operating System Support

Linux®, Windows® 10 & 11 (64-bit)
