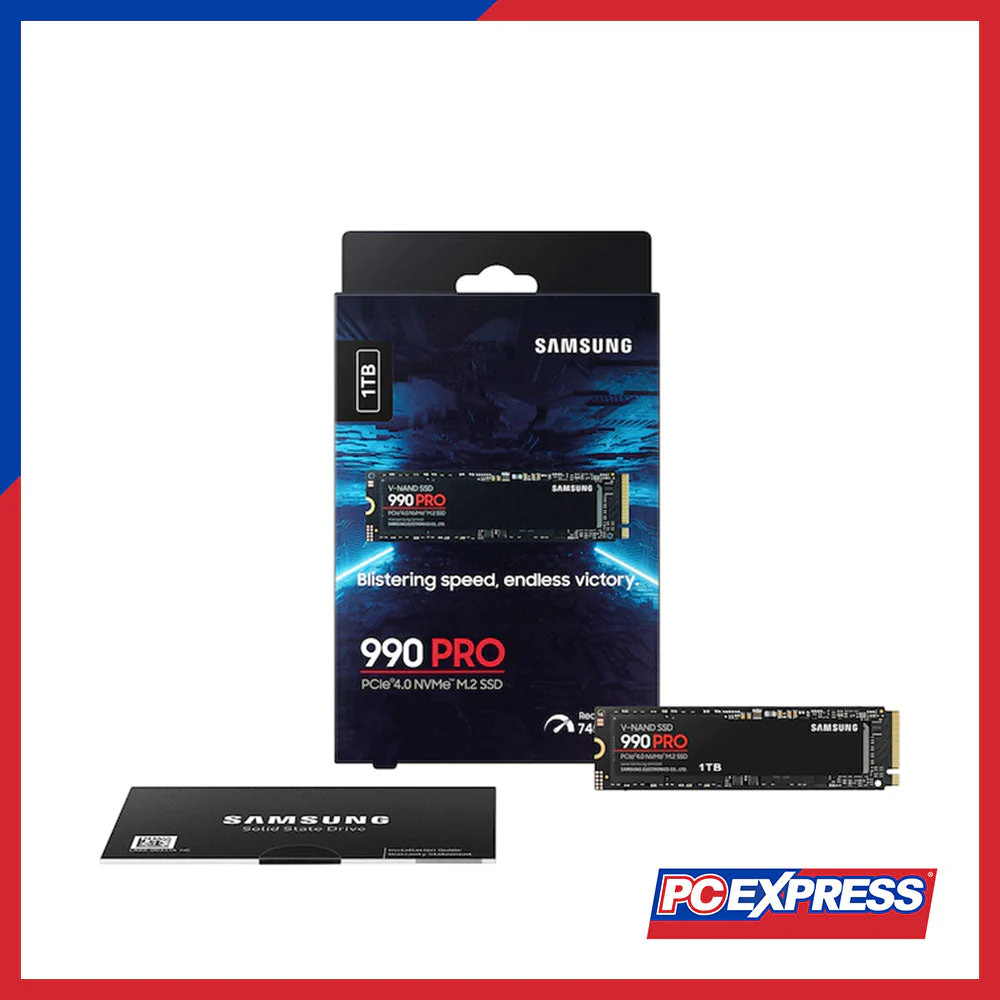

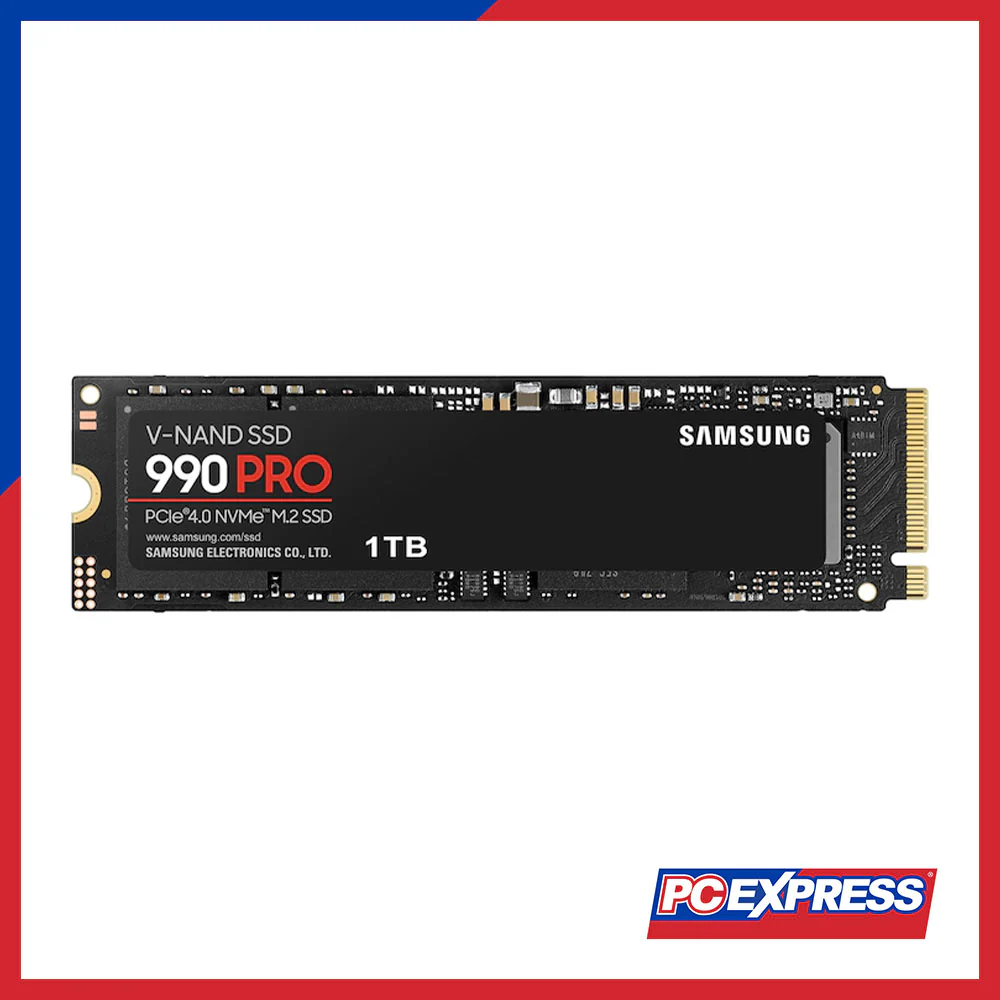

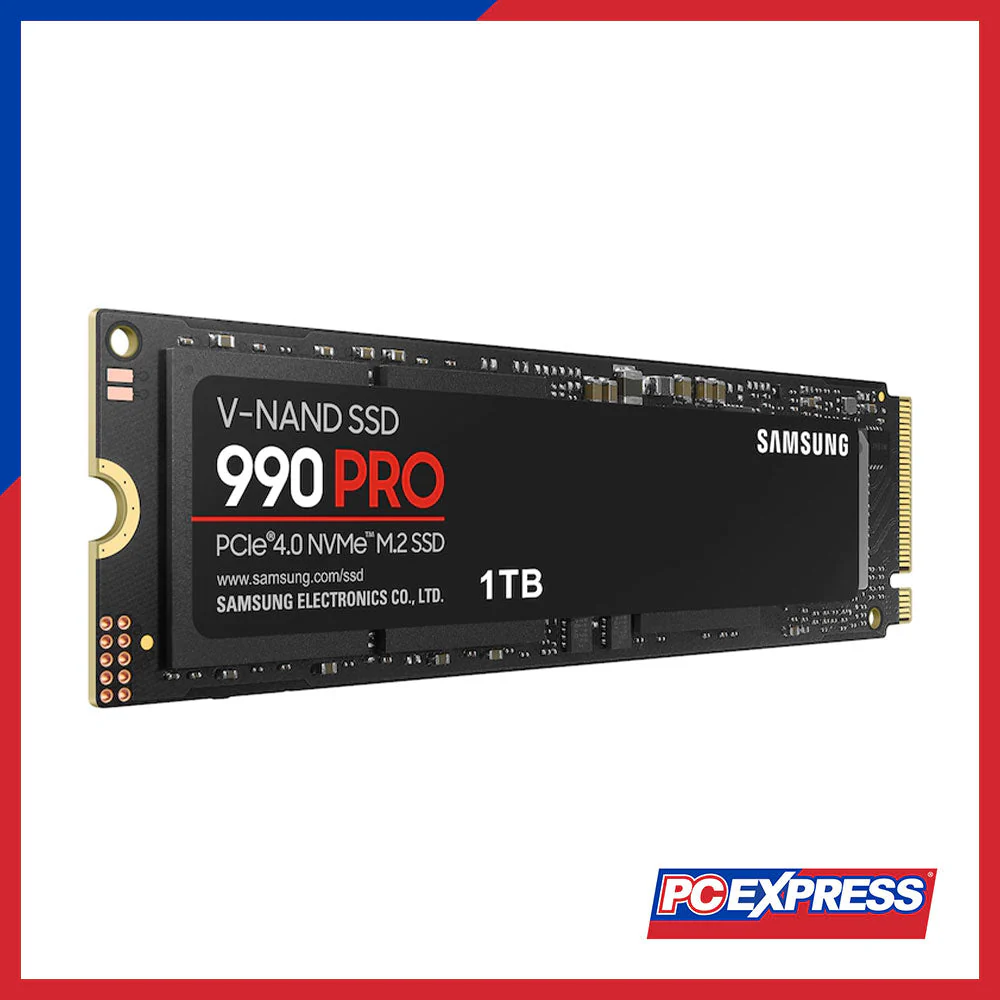

SAMSUNG 1TB 990 PRO NVME M.2 Solid State Drive
SPECIFICATION
|
Part Number |
(MZ-V9P1T0BW/MZ-V9P1T0B/AM) |
|
General Feature |
|
|
Application |
Client PCs, Game Consoles |
|
Capacity |
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
|
Interface |
PCIe Gen 4.0 x4, NVMe 2.0 |
|
Dimension (WxHxD) |
80 x 22 x 2.3 mm |
|
Weight |
Max 9.0g Weight |
|
Form Factor |
M.2 (2280) |
|
Storage Memory |
Samsung V-NAND 3-bit MLC |
|
Controller |
Samsung in-house Controller |
|
Cache Memory
|
Samsung 1GB Low Power DDR4 SDRAM |
|
Performance |
|
|
Sequential Read
|
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
|
Sequential write
|
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD32)
|
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD32)
|
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD1)
|
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD1)
|
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
|
Type |
|
|
Product Type |
990 PRO |
|
Key Features |
|
|
NVMe |
Yes |
|
Environmental Specs |
|
|
Operating Temperature |
0 - 70 ? Operating Temperature |
|
Shock |
1,500 G & 0.5 ms (Half sine) |
|
Software |
|
|
Management SW |
Magician Software for SSD management |
|
Special Feature |
|
|
TRIM Support |
Supported |
|
S.M.A.R.T Support |
Supported |
|
GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
|
Encryption Support
|
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
|
WWN Support |
Not supported |
|
Device Sleep Mode Support |
Yes |
|
Average Power Consumption (system level)
|
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
|
Power consumption (Idle) |
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
|
Allowable Voltage
|
3.3 V ± 5 % Allowable voltage |
|
Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF) |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
SAMSUNG 1TB 990 PRO NVME M.2 Solid State Drive
SAMSUNG 1TB 990 PRO NVME M.2 Solid State Drive
SPECIFICATION
|
Part Number |
(MZ-V9P1T0BW/MZ-V9P1T0B/AM) |
|
General Feature |
|
|
Application |
Client PCs, Game Consoles |
|
Capacity |
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
|
Interface |
PCIe Gen 4.0 x4, NVMe 2.0 |
|
Dimension (WxHxD) |
80 x 22 x 2.3 mm |
|
Weight |
Max 9.0g Weight |
|
Form Factor |
M.2 (2280) |
|
Storage Memory |
Samsung V-NAND 3-bit MLC |
|
Controller |
Samsung in-house Controller |
|
Cache Memory
|
Samsung 1GB Low Power DDR4 SDRAM |
|
Performance |
|
|
Sequential Read
|
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
|
Sequential write
|
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD32)
|
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD32)
|
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD1)
|
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD1)
|
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
|
Type |
|
|
Product Type |
990 PRO |
|
Key Features |
|
|
NVMe |
Yes |
|
Environmental Specs |
|
|
Operating Temperature |
0 - 70 ? Operating Temperature |
|
Shock |
1,500 G & 0.5 ms (Half sine) |
|
Software |
|
|
Management SW |
Magician Software for SSD management |
|
Special Feature |
|
|
TRIM Support |
Supported |
|
S.M.A.R.T Support |
Supported |
|
GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
|
Encryption Support
|
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
|
WWN Support |
Not supported |
|
Device Sleep Mode Support |
Yes |
|
Average Power Consumption (system level)
|
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
|
Power consumption (Idle) |
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
|
Allowable Voltage
|
3.3 V ± 5 % Allowable voltage |
|
Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF) |
Original: $184.15
-70%$184.15
$55.24Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATION
|
Part Number |
(MZ-V9P1T0BW/MZ-V9P1T0B/AM) |
|
General Feature |
|
|
Application |
Client PCs, Game Consoles |
|
Capacity |
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
|
Interface |
PCIe Gen 4.0 x4, NVMe 2.0 |
|
Dimension (WxHxD) |
80 x 22 x 2.3 mm |
|
Weight |
Max 9.0g Weight |
|
Form Factor |
M.2 (2280) |
|
Storage Memory |
Samsung V-NAND 3-bit MLC |
|
Controller |
Samsung in-house Controller |
|
Cache Memory
|
Samsung 1GB Low Power DDR4 SDRAM |
|
Performance |
|
|
Sequential Read
|
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
|
Sequential write
|
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD32)
|
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD32)
|
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Read (4KB ,QD1)
|
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
|
Random Write (4KB ,QD1)
|
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
|
Type |
|
|
Product Type |
990 PRO |
|
Key Features |
|
|
NVMe |
Yes |
|
Environmental Specs |
|
|
Operating Temperature |
0 - 70 ? Operating Temperature |
|
Shock |
1,500 G & 0.5 ms (Half sine) |
|
Software |
|
|
Management SW |
Magician Software for SSD management |
|
Special Feature |
|
|
TRIM Support |
Supported |
|
S.M.A.R.T Support |
Supported |
|
GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
|
Encryption Support
|
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
|
WWN Support |
Not supported |
|
Device Sleep Mode Support |
Yes |
|
Average Power Consumption (system level)
|
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
|
Power consumption (Idle) |
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
|
Allowable Voltage
|
3.3 V ± 5 % Allowable voltage |
|
Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF) |
