MSI PRO Z790-P WIFI ATX Motherboard
SPECIFICATION
|
Chipset |
Intel Z790 |
|
CPU Support |
Intel® Core™ 14th/ 13th/ 12th Gen, Pentium® Gold, Celeron®; LGA 1700 |
|
Memory |
4x DDR5, Max Capacity 192GB; Various Speed Support (OC) |
|
Onboard Graphics |
1x HDMI™ 2.1, 1x DisplayPort; Depends on CPU Graphics |
|
Slots |
3x PCI-E x16, 1x PCI-E x1; Various Gen and Speed Support |
|
Storage |
4x M.2 (PCIe 4.0 x4 / SATA), 6x SATA 6G; RAID Support |
|
USB Ports |
4x USB 2.0 (Rear), 4x USB 2.0 (Front); Various Gen and Types |
|
LAN |
Intel® 2.5Gbps LAN |
|
Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E, Bluetooth® 5.3; MU-MIMO, Various Frequencies |
|
Audio |
Realtek® ALC897, 7.1-Channel HD Audio |
|
Internal I/O |
Power Connectors, Fan Connectors, USB, RGB, TPM, Tuning Controller, etc. |
|
LED Feature |
4x EZ Debug LED |
|

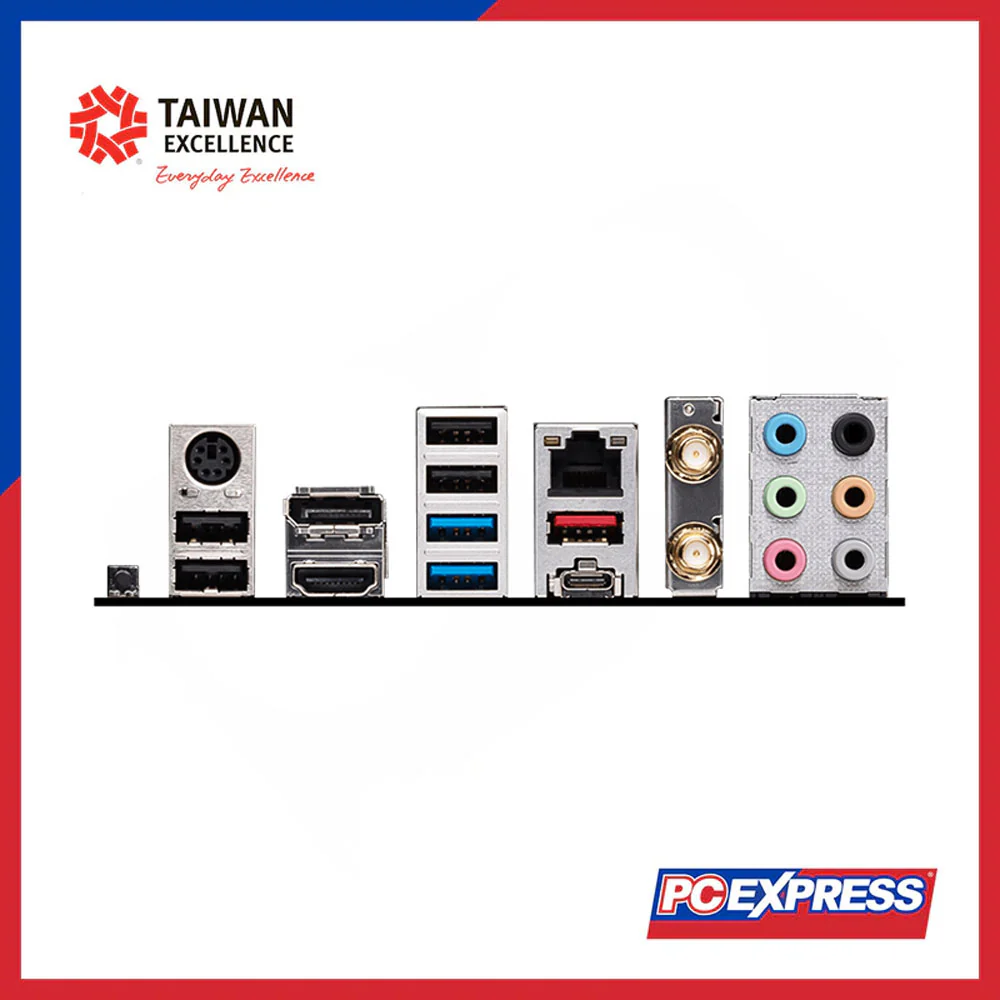

Back Panel Ports |
Keyboard/Mouse, DisplayPort, USB, LAN, Wi-Fi/Bluetooth, Audio, BIOS Button, HDMI™, USB Gen 1/2/2x2 |
|
Operating System Support |
Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB Info |
ATX, 243.84mmx304.8mm |
