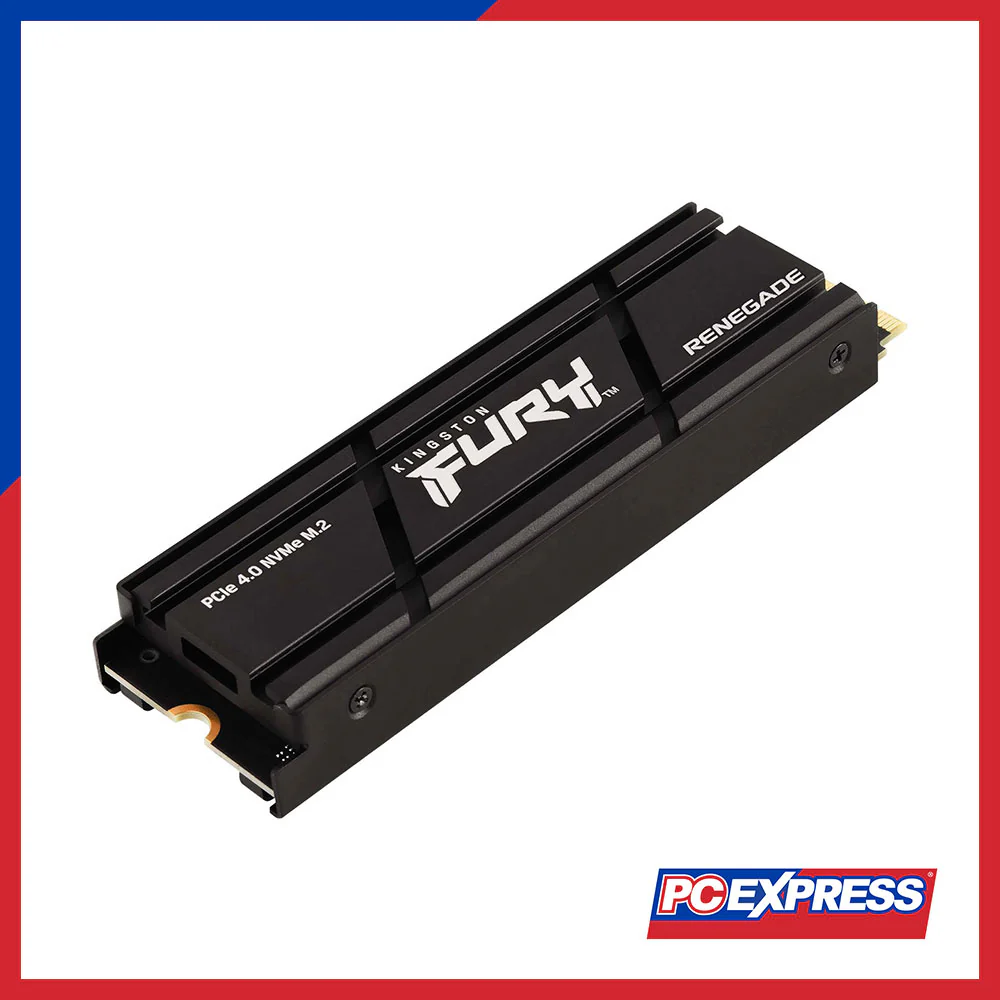

KINGSTON Fury 1TB Renegade M.2 PCIe NVMe Solid State Drive with Heatsink
SPECIFICATION
|
Part Number |
(SFYRSK/1000G) |
|
Interface |
PCIe 4.0 x4 NVMe |
|
Capacities |
1TB |
|
Controller |
Phison E18 |
|
NAND |
3D TLC |
|
Sequential Read/Write |
1TB – 7,300/6,000MB/s |
|
Random 4K Read/Write |
1TB – up to 900,000/1,000,000 IOPS |
|
Total Bytes Written (TBW) |
1TB – 1.0PBW |
|
Power Consumption |
See details in the text |
|
Storage Temperature |
-40°C~85°C |
|
Operating Temperature |
0°C~70°C |
|
Dimensions |
Heat spreader: |
|
80mm x 22mm x 2.21mm (500GB-1TB) |
|
|
Heatsink: |
|
|
80mm x 23.67mm x 10.5mm |
|
|
Weight |
See details in the text |
|
Vibration Operating |
2.17G Peak (7-800Hz) |
|
Vibration Non-operating |
20G Peak (20-1000Hz) |
|
MTBF |
2,000,000 hours |
